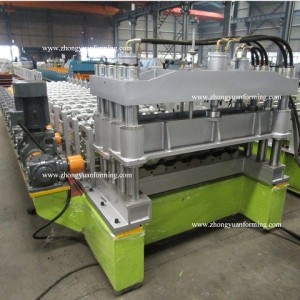

Máquina perfiladora Metropo de aluminio | ZHONGYUAN
| participación | |
|---|---|
| Categoría | Máquina perfiladora de chapa metálica |
| Espesor del material | 0.3-1.5mm |
| Velocidad de formado | 10-20m/min |
| Material del eje | 40Cr, Heat Treated |
| Material del rodillo | 45# Forged Steel, Chrome Plated |
| Método de corte | Hydraulic Cutting |
| Sistema de control | PLC + Touch Screen |
| Potencia del motor principal | 5.5-7.5kW |
| Voltaje | 415V/50Hz/3Phase |
Máquina perfiladora de tejas Metrocopo aluminio con transmisión por engranajes
Video de la máquina perfiladora Metrocopo, para una visión más clara.
| Datos técnicos de la máquina perfiladora metropo | |
|---|---|
| Material adecuado | Q235 color steel sheet;0.4-0.5mm, |
| Velocidad de trabajo | About 6m/min |
| Distancia de paso | adjustable according to requirement (>=250mm) |
| Requisito de potencia | Potencia del motor principal: 5.5 Kw(Depend on final design) |
| Potencia de la estación hidráulica: 5.5Kw(Depend on final design) | |
| Material de los rodillos formadores | No.45 steel, plated with chrome on surface. |
| Material del cortador y matriz | Cr12 mould steel with quench treatment, HRC58-60 |
| Material del eje | High quality 45# steel, Dia. is 72mm. Roller grinder milling. |
| Diámetro del eje | 72mm |
| Sistema de control | Mitsubishi PLC & converter |
| Peso total de la máquina | About 10500KGS |
| Dimensiones de la máquina | about 18m×1.8m× 1.5m (Depend on final design) |
Dibujo de diseño de machine
Roll forming system
Roller material is high grade No.45 forged steel plated with hard chrome, by digital-controlled procession.
40mm thickness wall for forming system to ensure machine 15 years long life.
Hydraulic system
Designed with accumulator to accumulate energy and cooling fan to cool hydraulic system, so that ensure the machine can run to produce 6m per minute stably.
Machine shafts for rollers
1. Shaft material is No.45 steel with diameter 72mm, strong and durable.
2. Shafts are processed for three times from rough machining to grinder machining, to ensure the precision of final product.
Product from machine
Controller
once you set quantity and length of product,machine will produce product automatically.
Zhongyuan Metropo Roll Forming Machine’s advantages
1.Production speed: 6m per minute . User can get 2880m per day. (one shift working 8 hours)
2. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .
3. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.
4. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
5. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
6. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
7. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifetime services for our machines.
