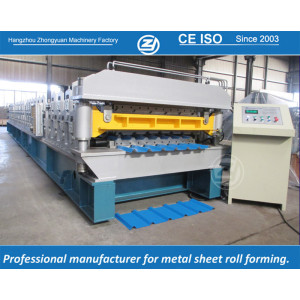

AG & Rib Profile Double Layer Roll Forming Machine | ZHONGYUAN
| participación | |
|---|---|
| Categoría | Máquina perfiladora de doble capa |
| Espesor del material | 0.3-1.0mm (roof) / 0.3-0.8mm (tile) |
| Roof Forming Speed | 10-15m/min |
| Tile Forming Speed | 5-6m/min |
| Material del eje | 40Cr, Heat Treated |
| Material del rodillo | 45# Forged Steel, Chrome Plated |
| Método de corte | Hydraulic Cutting |
| Sistema de control | PLC + Touch Screen |
| Potencia del motor principal | 5.5kW + 5.5kW |
| Voltaje | 415V/50Hz/3Phase |
Double Layer Roll Forming Machine’s Feature:
One machine can make two kinds of profile. Client’s profile available.
| Technical data of double layer roll forming machine | |
|---|---|
| Material adecuado | Q235 color steel sheet;0.3-0.7mm, |
| Velocidad de formado | about 20-25m/min |
| Requisito de potencia | Potencia del motor principal: 7.5 Kw(Depend on final design) |
| Potencia de la estación hidráulica: 2.2Kw(Depend on final design) | |
| Material de los rodillos formadores | No.45 steel, plated with chrome on surface. |
| Material del cortador | Cr12 mould steel with quench treatment, HRC58-60 |
| Material del eje | High quality 45# steel with heat treatment. Roller grinder milling. |
| Diámetro del eje | 72mm |
| Sistema de control | Mitsubishi PLC & converter |
| Peso total de la máquina | About 13000KGS |
| Dimensiones de la máquina | about 11.5m×1.8m× 1.5m (Depend on final design) |
| Envío | 1x40GP container can load one machine |
Forming system
Bearings inside rollers:
Bearings inside the forming rollers to allow machine run with less loading, so that machine rollers not easy to be damaged to prolong machine life. More important, machine can get more precise sheet because of bearing designing
Machine shafts for rollers
1. Shaft material is No.45 steel with diameter 72mm, strong and durable.
2. Shafts are processed for three times from rough machining to grinder machining, to ensure the precision of final product.
Samples from machine
Controller
once you set quantity and length of product,machine will produce product automatically.
Our Metal Roll Forming Machine’s advantages
1.Velocidad de formado: 20-25m per minute or 30-35m per minute .
2. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .
3. . Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.
4. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
5. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
6. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
7. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifetime services for our machines.
