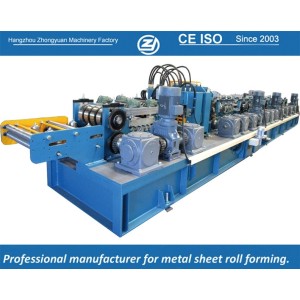

Z Purlin Roll Forming Machine | ZHONGYUAN
| participación | |
|---|---|
| Categoría | Máquina perfiladora de correas |
| Espesor del material | 1.5-4.0mm |
| Yield Strength | 500-550MPa |
| Velocidad de formado | 18m/min |
| Shaft Diameter | 90mm |
| Material del eje | 40Cr, Heat Treated |
| Material del rodillo | Cr12MOV, 58-60HRC |
| Método de corte | Hydraulic Cutting |
| Sistema de control | PLC + Touch Screen |
| Potencia del motor principal | 3×7.5kW + 1×5.5kW |
| Voltaje | 415V/50Hz/3Phase |
Automatic Z Purlin Forming Machine
Automatic Z Purlin Forming Machine video，you can see more clearly.
| Technical data of Automatic Z Purlin Forming Machine | |
|---|---|
| Suitable Material | Cold-rolled steel strip and heat-treated galvanized steel strip |
| Thickness of raw material | 1.5-3.2mm (235-345Mpa) |
| Size of C purlin | 100-305mm adjustable (special size available) |
| Material of roller | Cr12 mould steel being quenched treatment,HRC58-60 |
| Material del cortador blade& punching die | Cr12 mould steel with quenched treatment, HRC58-60 |
| Material del eje | High quality 45# steel with heat treatment. Roller grinder milling. |
| Requisito de potencia | Potencia del motor principal: 4X4 Kw(Depend on final design) |
| Potencia de la estación hidráulica: 5.5Kw (Depend on final design) | |
| Diameter of shaft for rollers | 82mm |
| Sistema de control | Mitsubishi PLC & converter |
| Quantity of rollers | about 15 stations for main rollers |
| Weight of machine | About 22000KGS |
| Size of machine | About 17.5mX2.1mx1.6m |
Dibujo de diseño de Automatic Z Purlin Forming Machine
Gearbox transmission system
Gearbox transmission system moves the line to ensure machine strong enough to run raw material thickness 3.0mm
Automatic adjusting to do different sizes of Z purlin
Change size of purlin automatically. People key in and then the control system adjusts the different sizes automatically. Just push the button and the rollers will automatically adjust the required sizes without being adjusted by people.
One machine can do following different size, automatic adjustment. Special sizes of purlin can be designed in our company.
Produce Showing:
Our Roll Forming Machine’s advantages
1.Anti-rust roller: Cr12 mould steel being quenched treatment,HRC58-60, CNC machine tooled to increase rollers precision.
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
5. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifetime services for our machines.
