Categoría	Línea de producción de paneles sándwich
Velocidad de producción	3-6m/min
Panel Width	600-1200mm
Panel Thickness	50-200mm
Sistema de control	PLC + Touch Screen
Heating Method	Hot air circulation / Electric heating
Potencia del motor principal	15-30kW
Voltaje	415V/50Hz/3Phase

Conecta ahora

Favoritos

Información Detallada

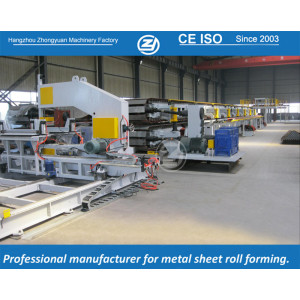

Description of PU Sandwich Panel Production machine Our PU sandwich panel Production line is one line that integrates advanced mechanical, chemical, electrical, hydraulic, and pneumatic technologies.

Sandwich Panel Spec
Min. cutting length	3 meters
Max. stacking length	15m
Panel width	1000mm (can be designed as per client’s requirment)
Panel thickness	Mini thickness	30mm (corrugated sandwich panel) 50mm (wall panel)
Panel thickness	Max. thickness	150mm(exclude corrugated sandwich panel)

Sandwich Panel Spec
Min. cutting length	0.4-0.7mm color steel sheet
Max. stacking length	1250mm (can be designed as per client’s requirement)
Panel width	10 tons
Panel thickness	508mm

Whole Line Spec
Velocidad de trabajo	About 3-7m/min (adjustable)
Total length	About 105m
Working height	1200mm (height of panel coming out)
Pressure for foaming	150-200 bar
Double belt conveyor	23m
Control mode	Mitsubishi PLC and converter
Total power	About 100Kw (as per final designing)
Power required	380V/3phase/50Hz or as per customer's requirement.
Air pressure	0.7Mpa (for buyer to prepare)

Product application

Due to its high efficiency and simple operation, this forming machine is widely used in the construction of steel structure enclosures, cold storage, and mobile buildings. In order to satisfy various customer requirements, we design and manufacture PU sandwich panel production lines in different specs, models and configurations.
