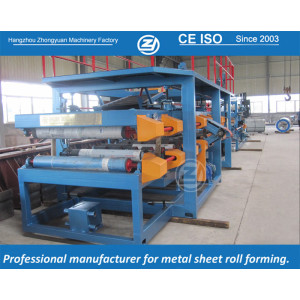

EPS Sandwich Panel Production Line | ZHONGYUAN

participación
Categoría	Línea de producción de paneles sándwich
Velocidad de producción	3-6m/min
Panel Width	600-1200mm
Panel Thickness	50-200mm
Sistema de control	PLC + Touch Screen
Heating Method	Hot air circulation / Electric heating
Potencia del motor principal	15-30kW
Voltaje	415V/50Hz/3Phase

Conecta ahora

Favoritos

Información Detallada

Product of EPS Sandwich Panel Production Machine ESP sandwich panel production machine could make the polystyrene core sandwich panel. This sandwich panel product line adopts PLC and touch screen controlling system. It could make both roof and wall sandwich panel with core of polystyrene foam material

EPS Sandwich Panel Spec
Panel thickness	Mini thickness	50mm (wall panel)
Panel thickness	Max. thickness	200mm(exclude corrugated sandwich panel)

Sandwich Panel Spec
Min. cutting length	0.4-0.7mm color steel sheet
Max. stacking length	1250mm (can be designed as per client’s requirement)
Panel width	5 tons
Panel thickness	508mm

Whole Line Spec
Whole line dimension	about 35000mm × 2500mm × 3000mm
Total weight	About 18t
Velocidad de trabajo	About 5-7m/min (adjustable)
The outpu	1500m2-2000m2/8hour
Control mode	PLC and converter
Total power	About 28Kw (as per final designing)
Power required	380V/3phase/50Hz or as per customer's requirement.
Air pressure	0.7Mpa (for buyer to prepare)
Suitable working temperature	About 25 degree

Product application

Due to its high efficiency and simple operation, this forming machine is widely used in the construction of steel structure enclosures, cold storage, and mobile buildings. In order to satisfy various customer requirements, we design and manufacture PU sandwich panel production lines in different specs, models and configurations.
